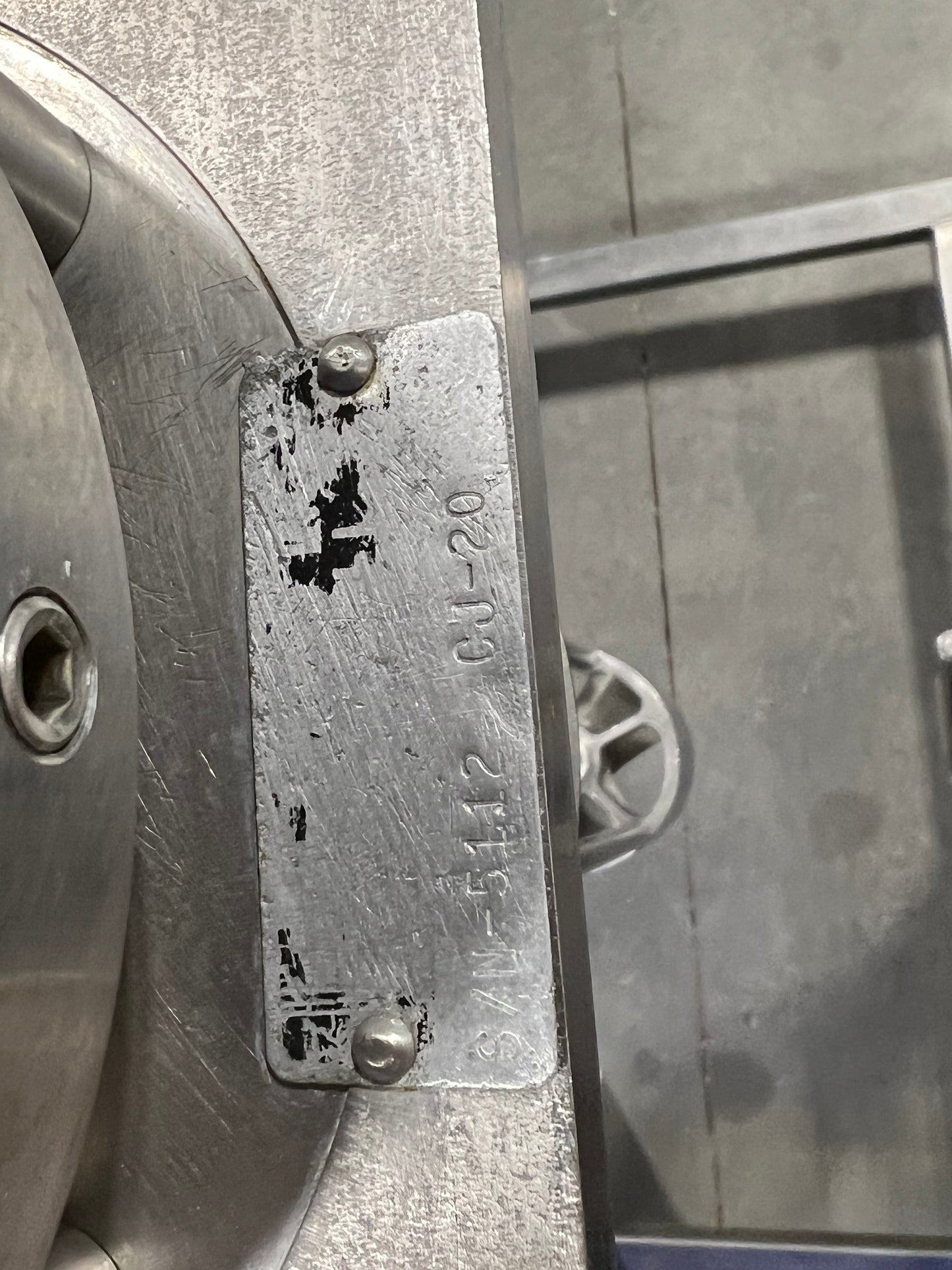

Arde Barinco - CJ20 High Shear Mixer

24" or 36" (Need to confirm the shaft length when in the office) immersion length shaft with (3) support rods holding 4.5” dia. rotor housing.



3.5" diameter, 3 blade 30 degree axial flow rotor.



7” adjustable baffle plate with (1) control rod and locking handle.



All major wetted parts Type 316 stainless steel except Rulon mixing head bearing (FDA accepted).



Drive shaft directly coupled to 3 HP, 3600 RPM, stainless steel washdown TEFC Reversible motor for 3/60/230-460 service. (Starter omitted).



With stainless steel mounting plate for bolting to tank spanning supports.
