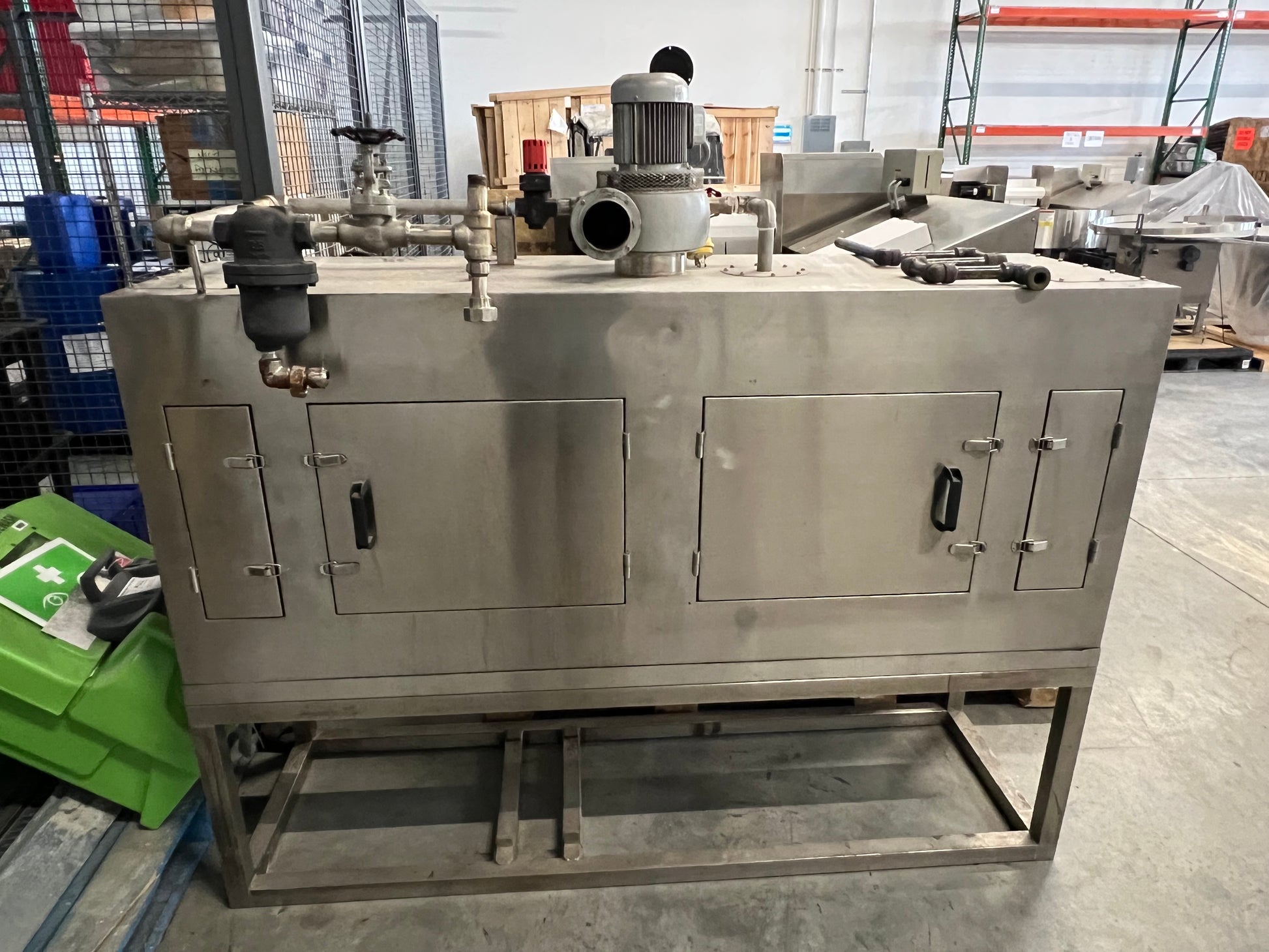

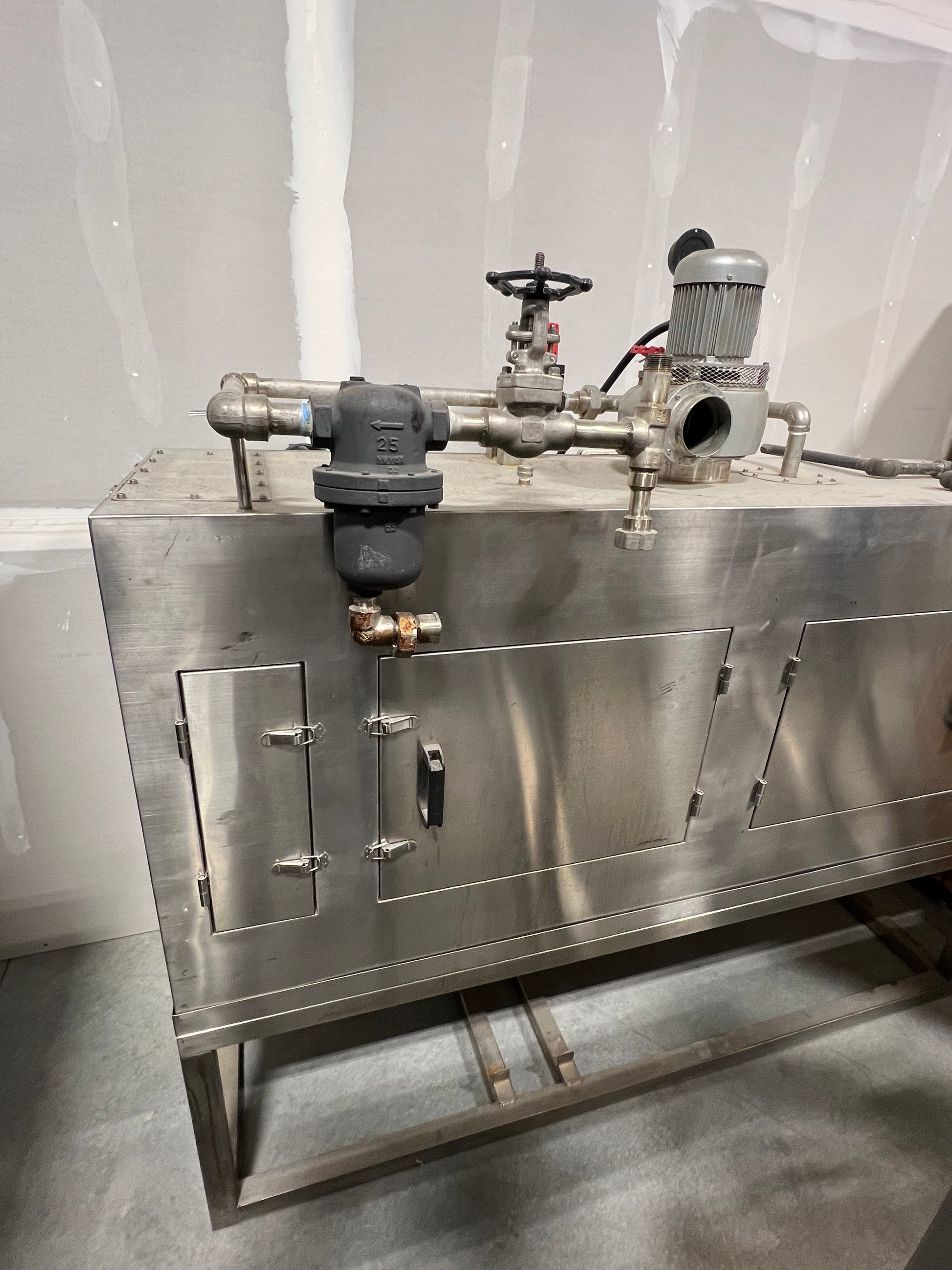

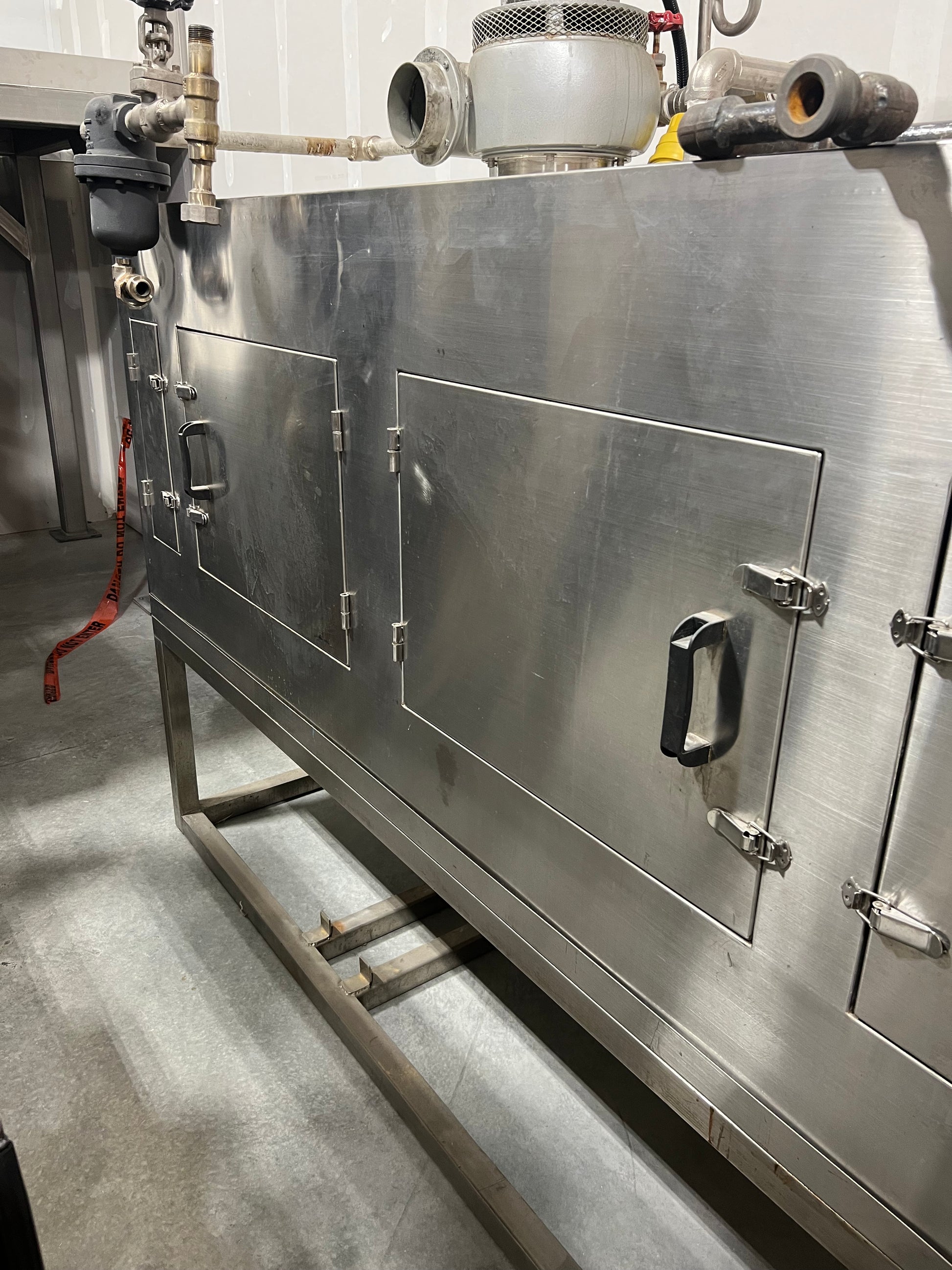

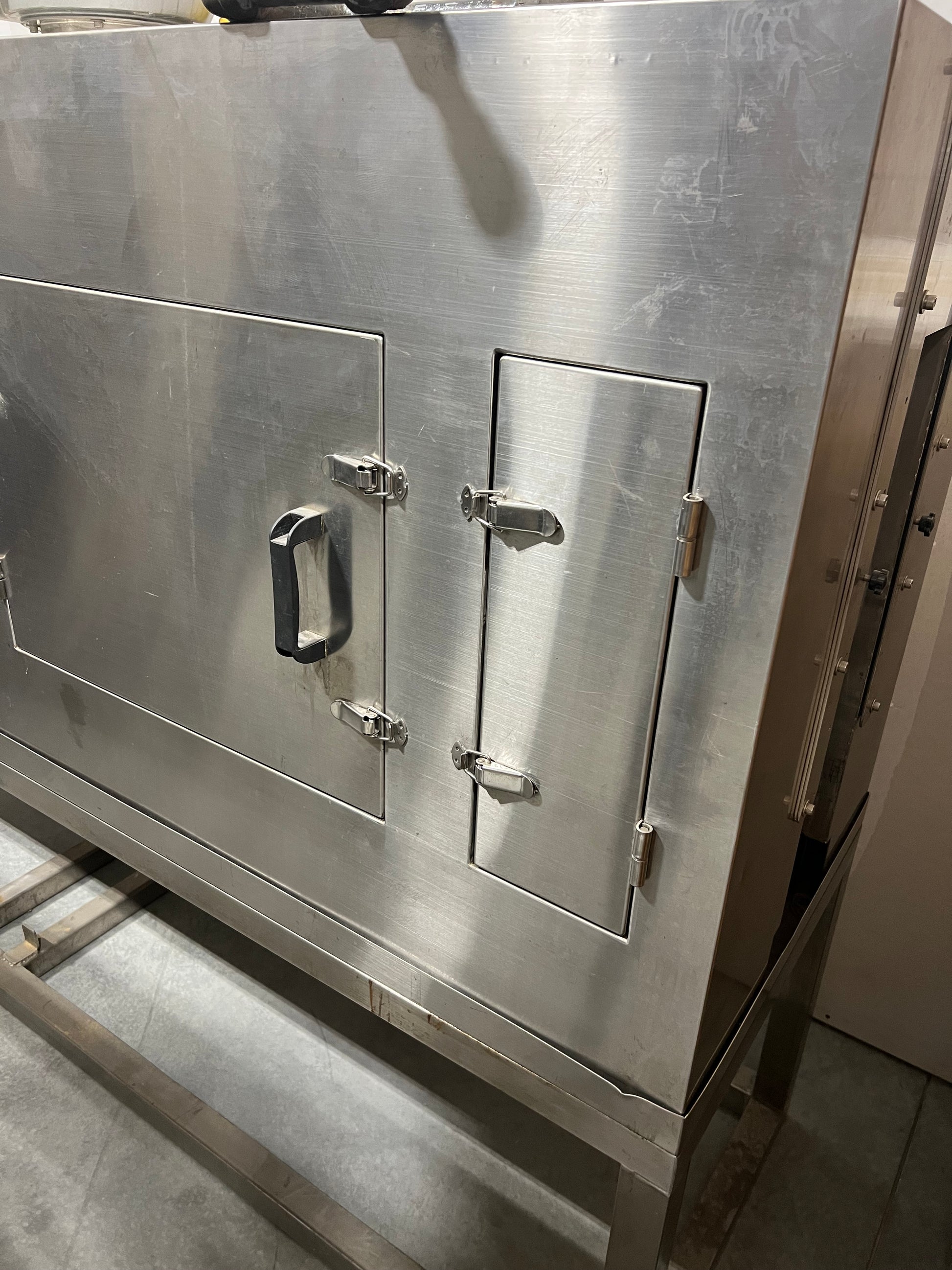

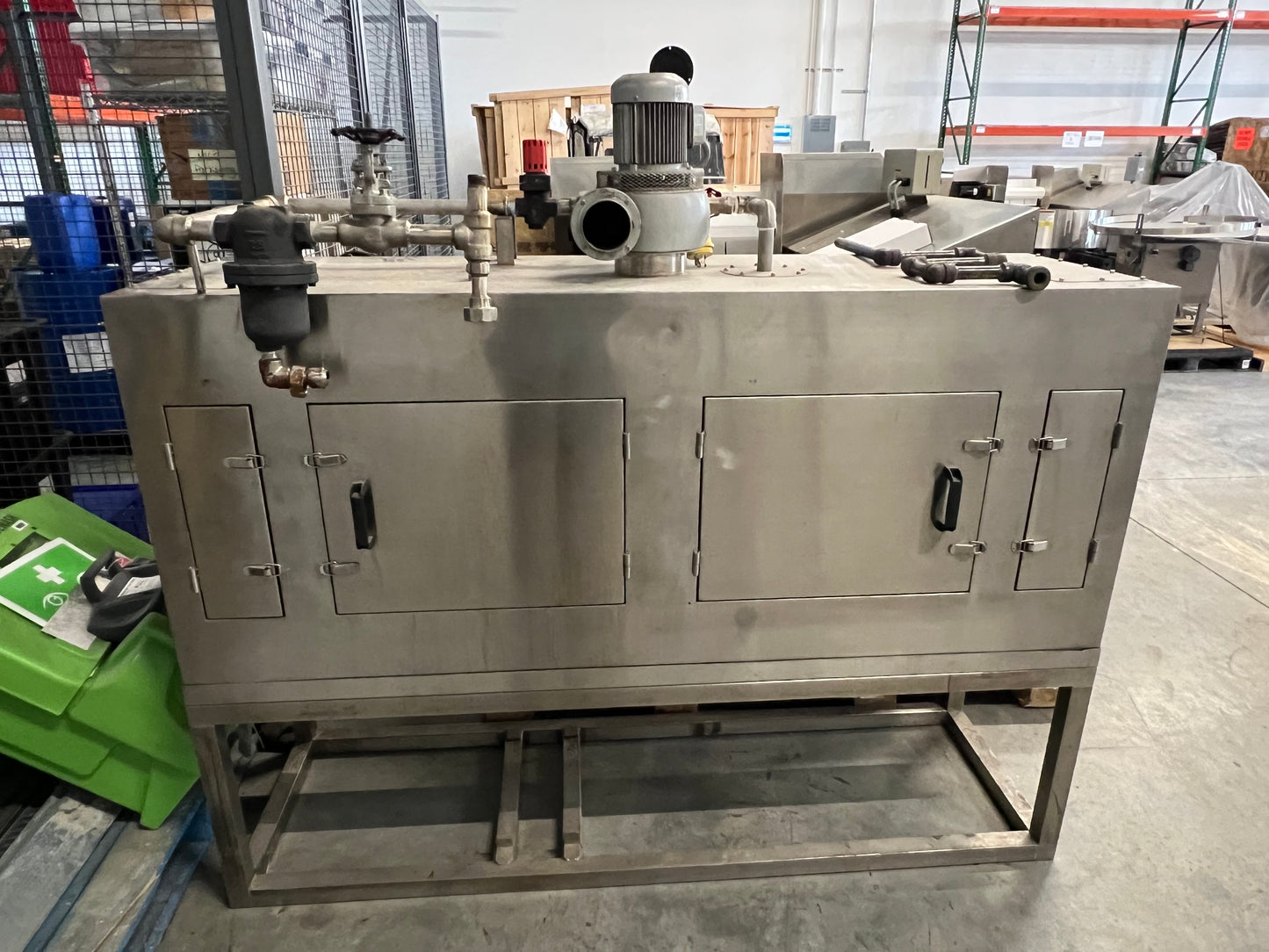

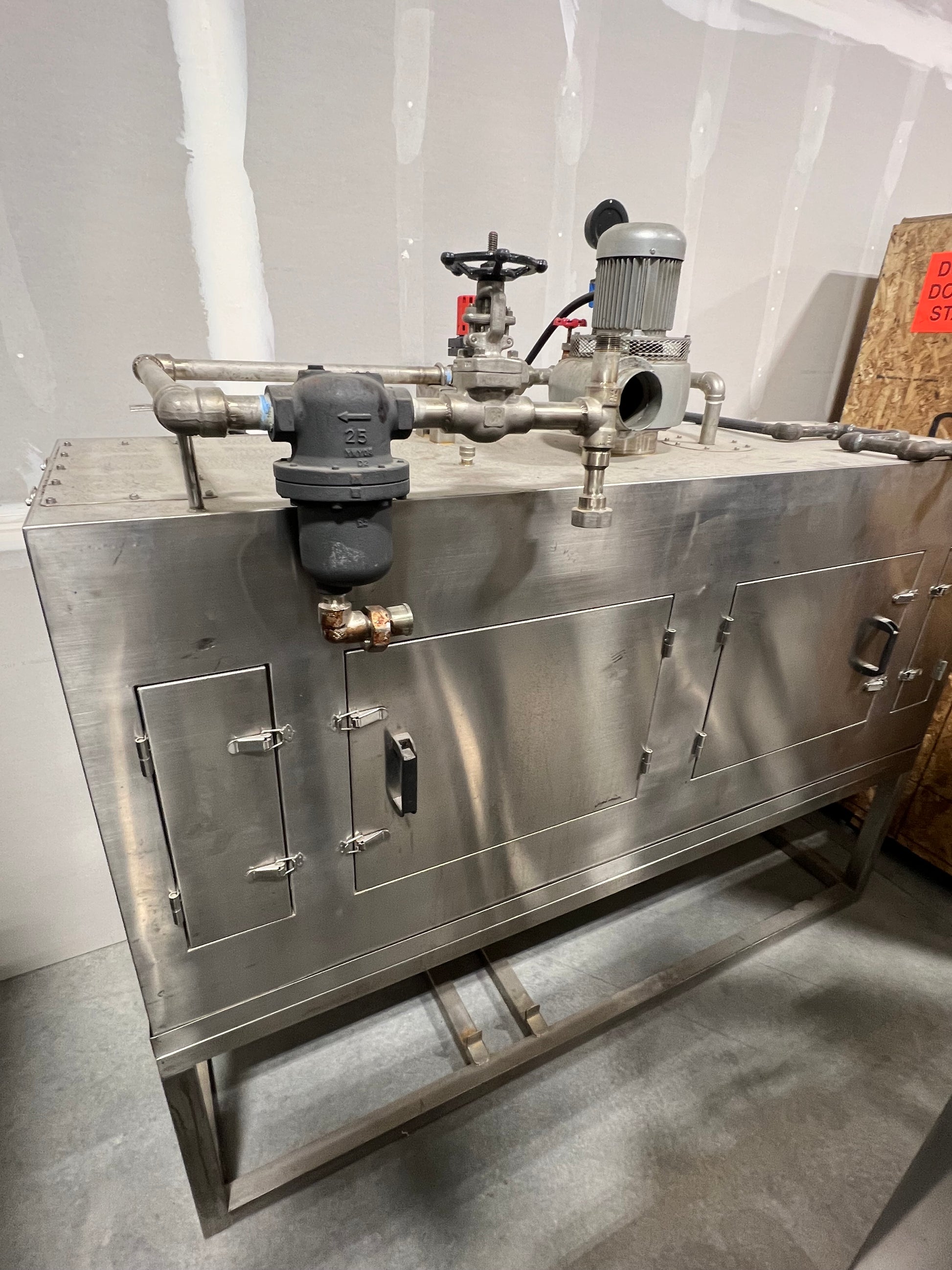

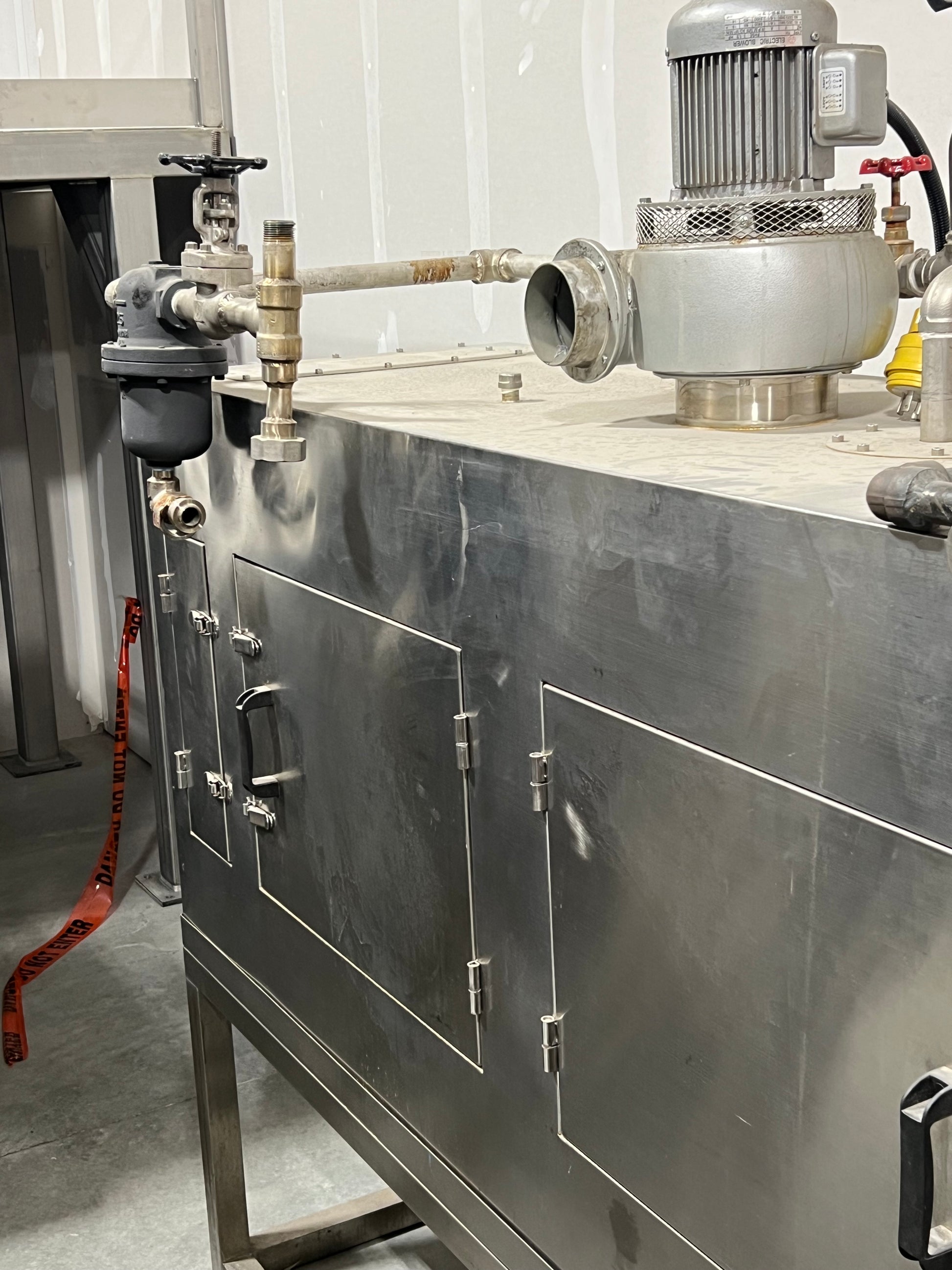

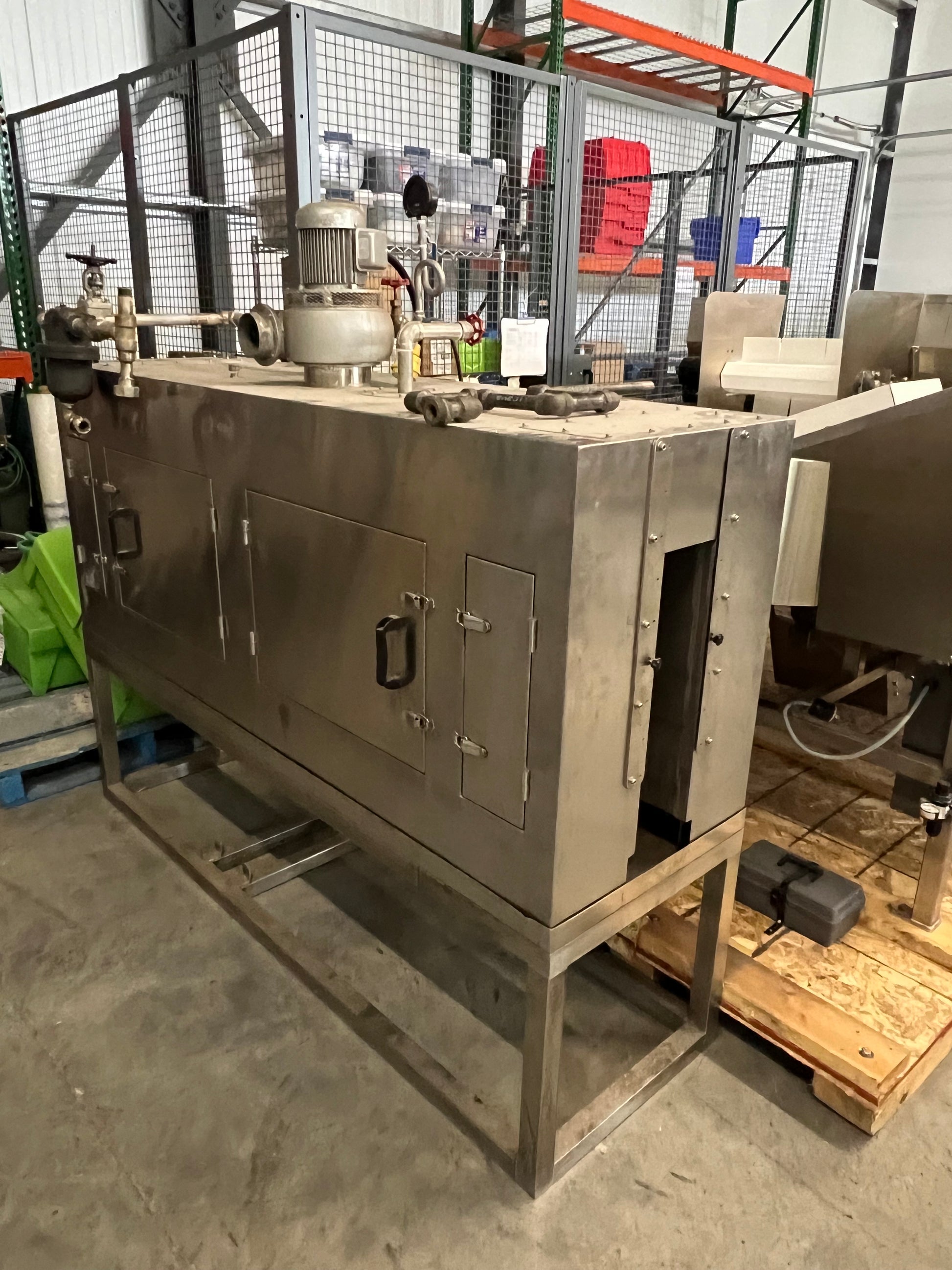

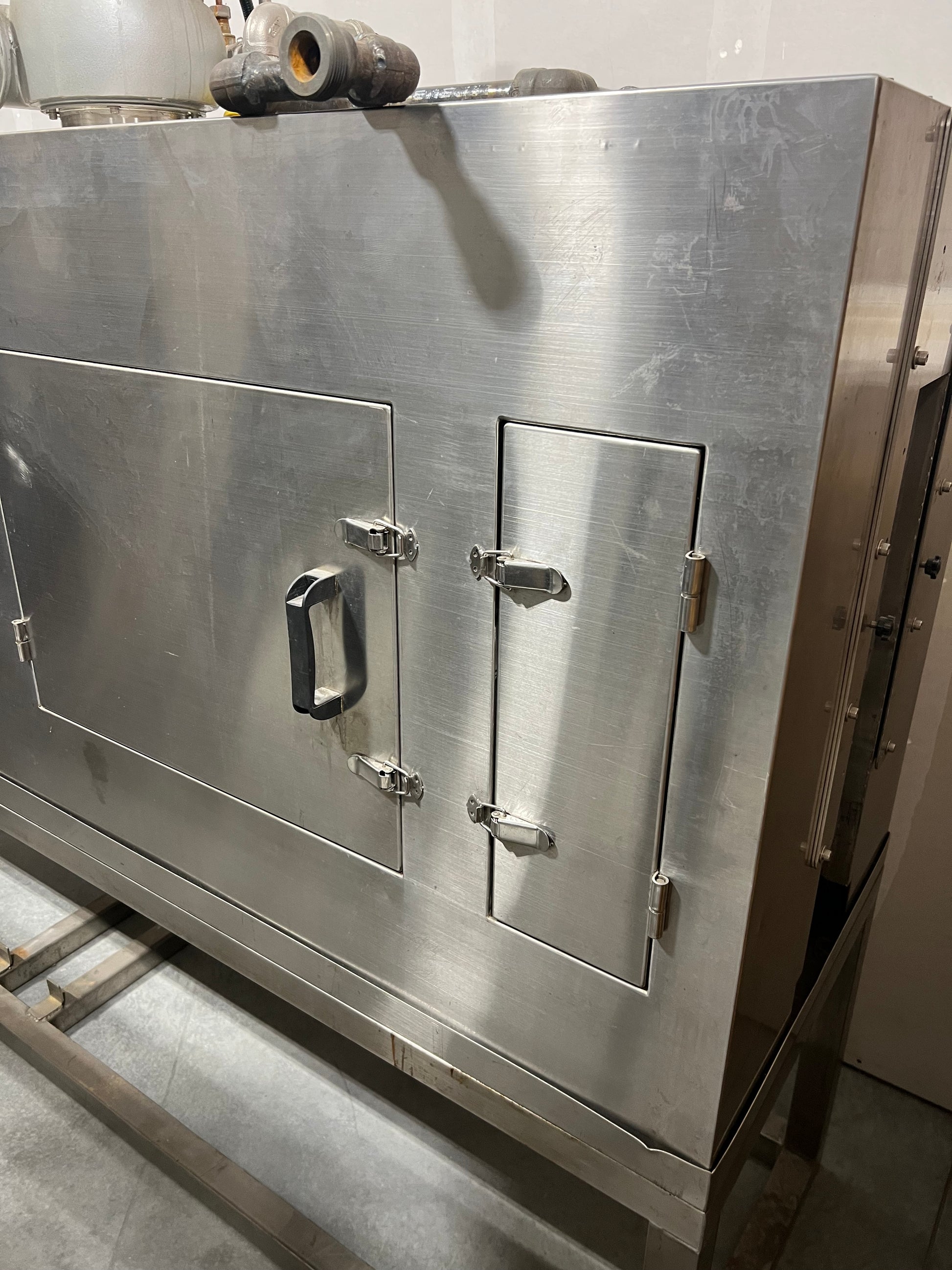

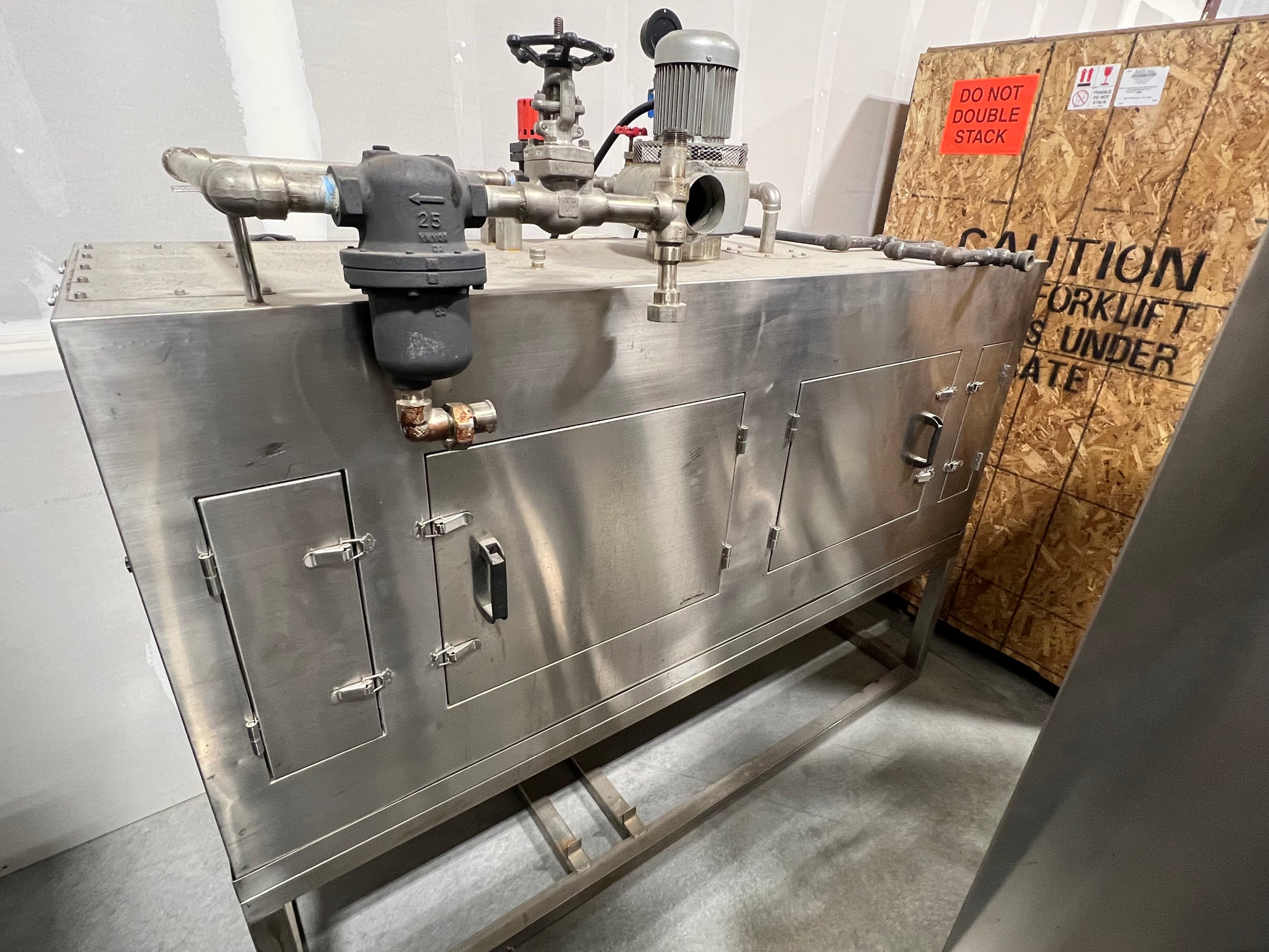

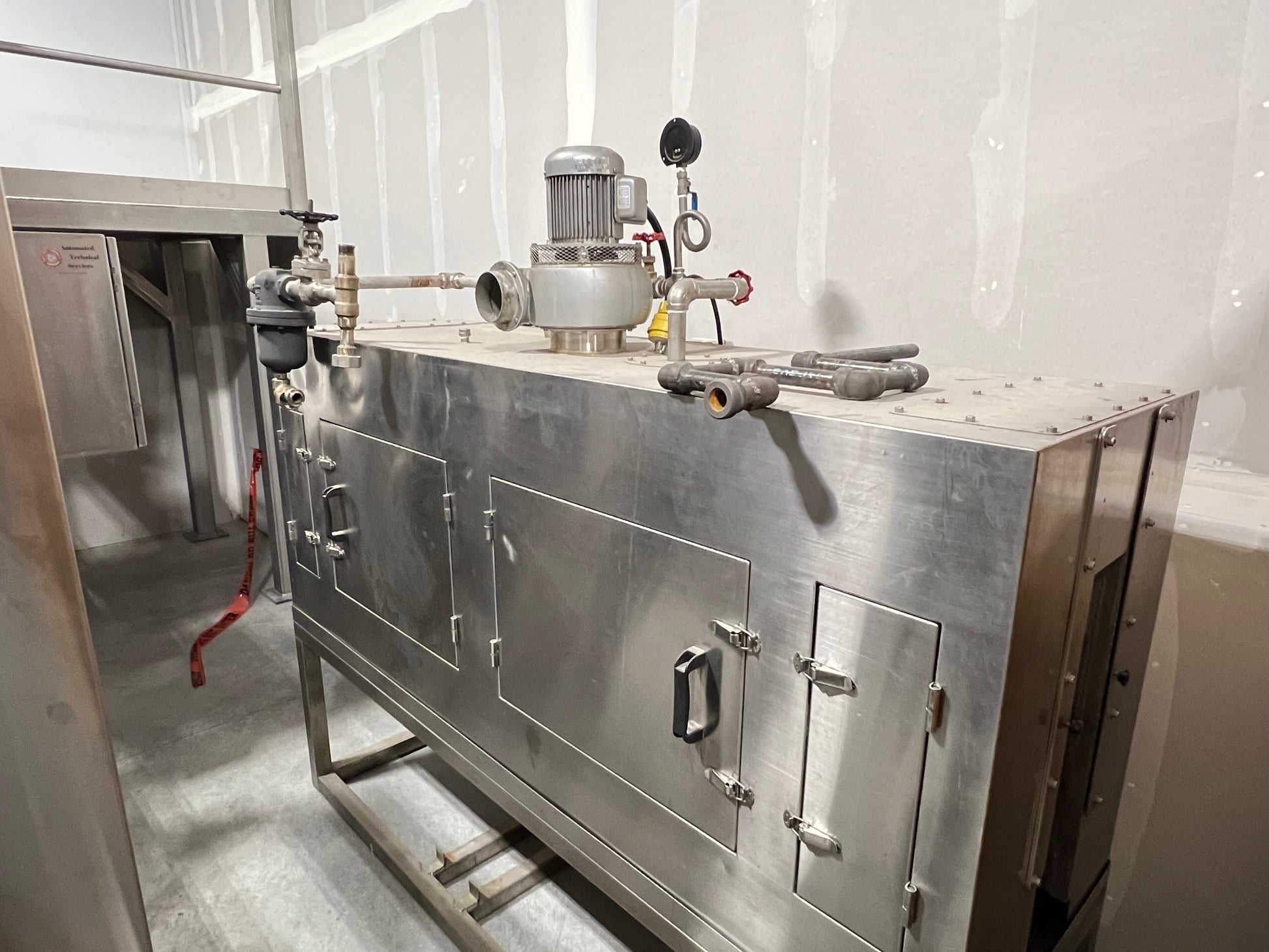

Tripack’s shrink tunnel product line varies by opening (adjustable), overall tunnel length, and number of heating zones. Shrinking of film is a function of time and temperature. So, there is a correlation between tunnel length and conveyor speed based on product size and throughput. The ST-1 is our mid-sized (6.5') steam tunnel and has multiple zones that can be set up independently. To achieve optimal shrink for a great looking product, it is common to use either a single tunnel or multiple tunnels.
STANDARD SPECIFICATIONS
| Standard Power |
240/480 Volt, 3 Phase, 30/20 Amp |
|
|
| Tunnel Length |
6.5' |
|
|

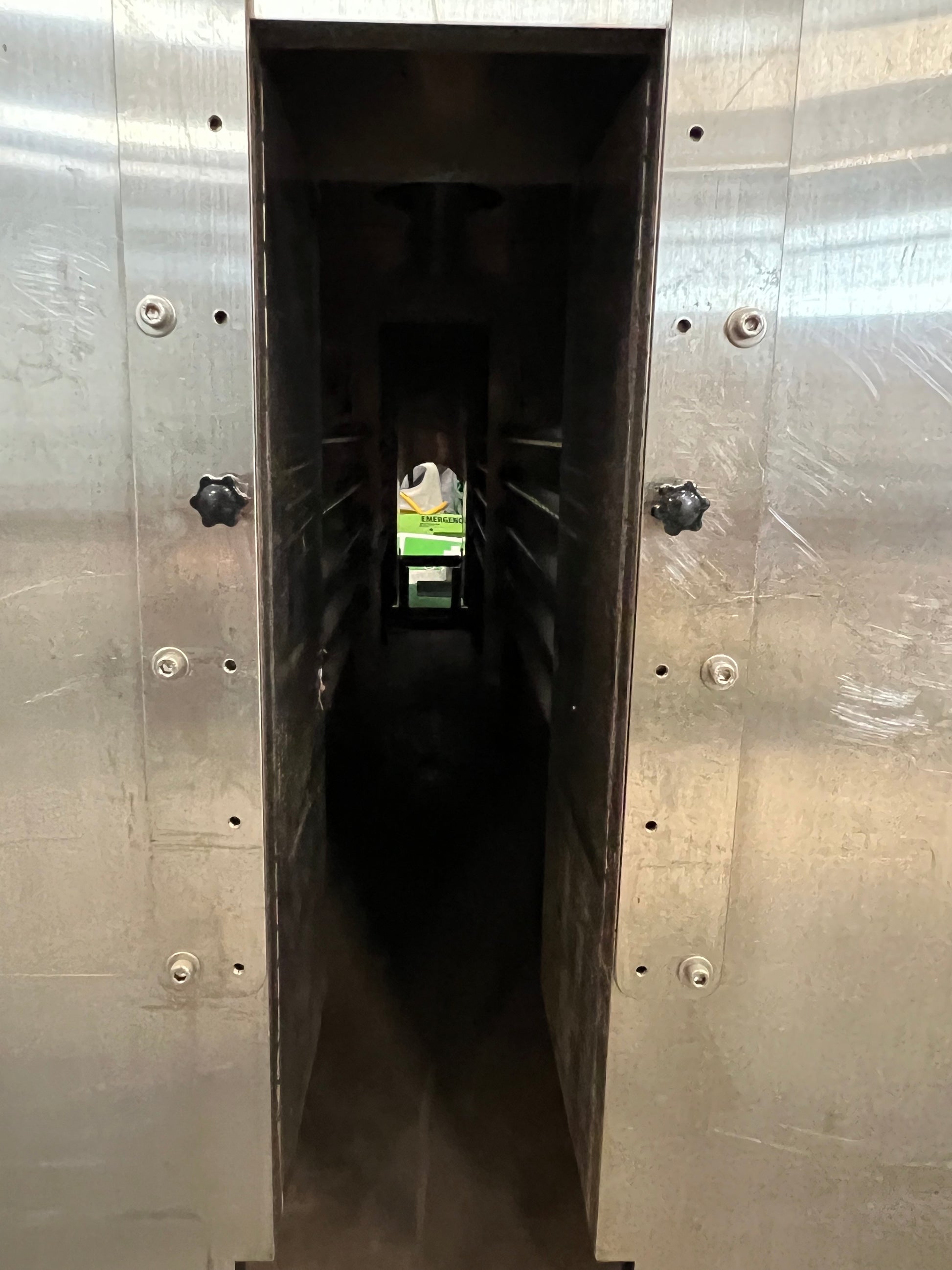

| Tunnel Entrance/Exit (WxH) |
9.5" x 25" |
|
|
| Standard Height Range |
24.5" - 39.25" |
|
|

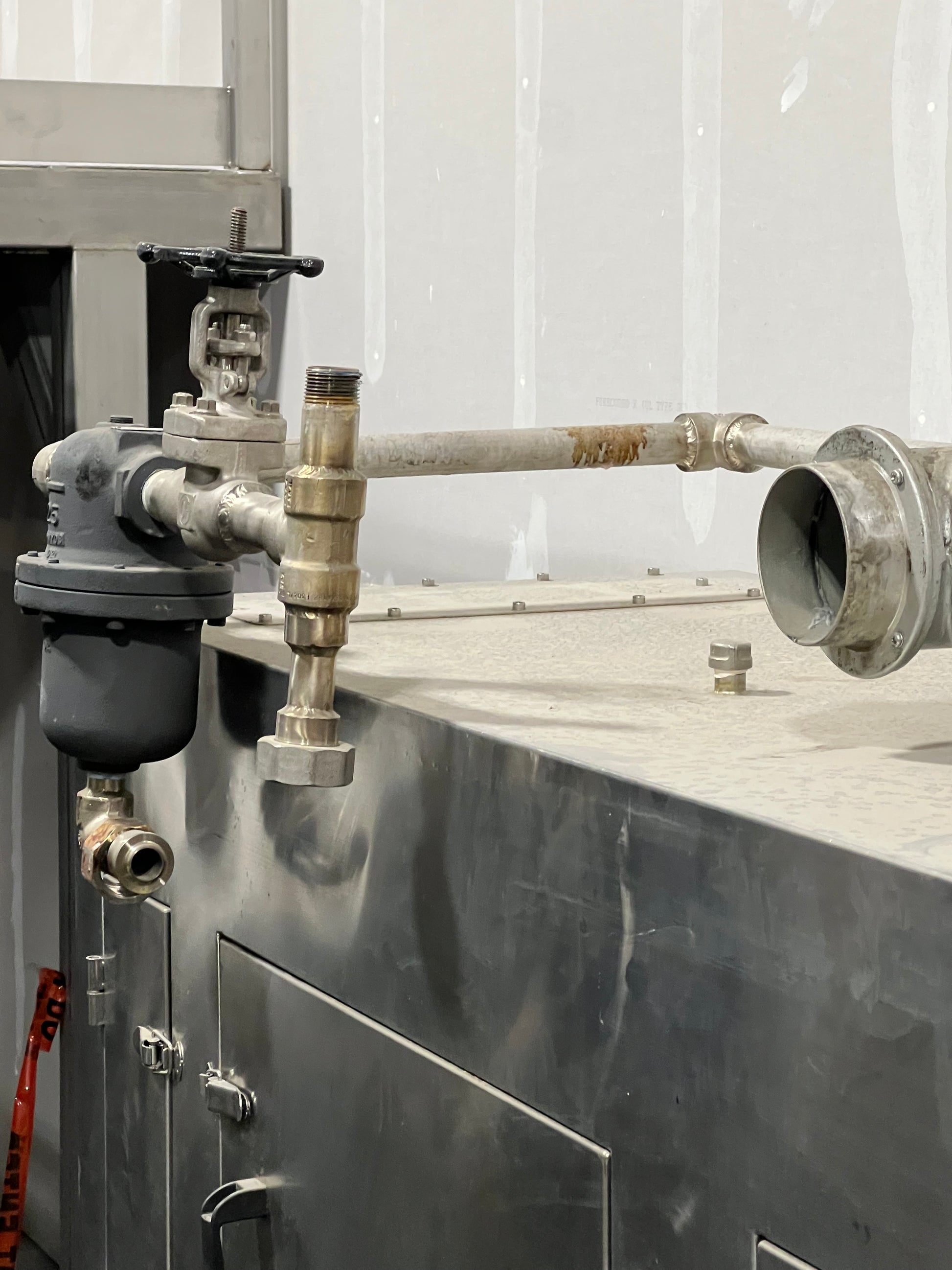

| Min Steam Supply Pressure |
80 psi |
|
|
| Max Steam Consumption |
550 lb/hr |
|
|

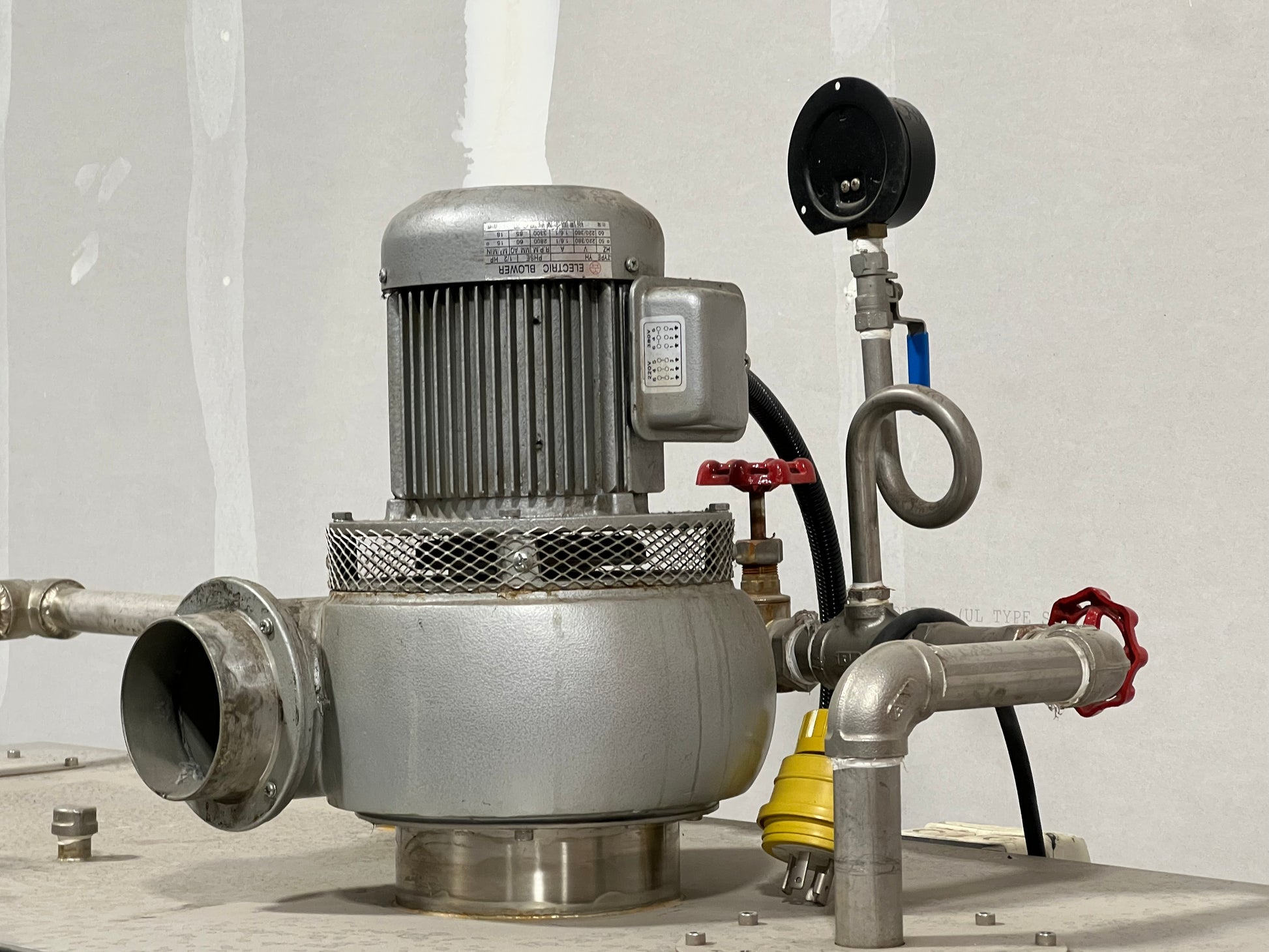

| Exhaust Blower Max |
592 cfm |
